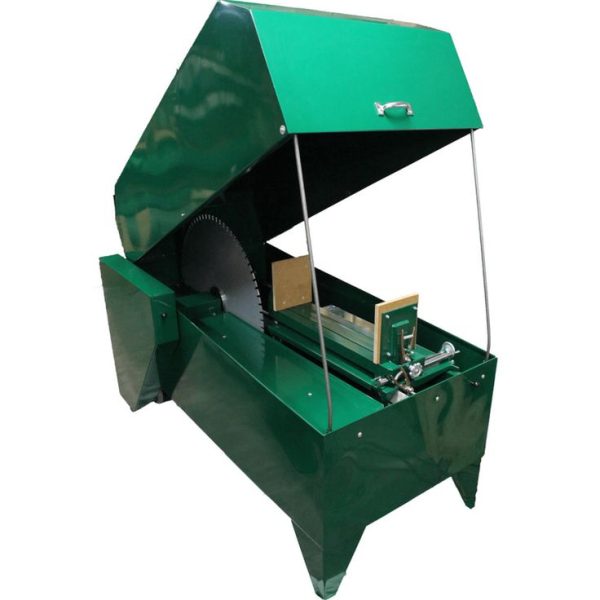

36 inch slab saw with powerfeed, cross-feed vise, Greenline blade and 3 HP 220V 60Hz motor

Model 36 lapidary diamond saw is a 36-inch precision cutting, glass coldworking and lapidary equipment slab saw with heavy-gauge, powder-coated steel tank, powerfeed, crossfeed vise and 3 HP 220v motor. Greenline Agate Eater diamond blade is included. 36 INCH SLAB SAW MODEL 36 WITH POWERFEED AND CROSS-FEED VISE WORKPIECE SIZE: UP to 13-1/2 inch X 26-inch cross-section FEATURES AND SPECIFICATIONS: ARBOR SHAFT – Cold-rolled steel machined to 1-3/8 inch diameter bearing. 1-inch diameter for diamond saw arbor BLADE FLANGES – Steel 9-inch outside diameter BLADE – Greenline Agate Eater segmented 36-inch blade included AUTOMATIC CUT-OFF SWITCH – Adjustable for length of cut POWERFEED – 3 speeds. Approximate workpiece infeed rates: ¼ inches per hour 7½ inches per hour 9¼ inches per hour SPLIT NUT DRIVE – Engages carriage with powerfeed screw. Released by a flip of the handle for a quick carriage return ROLLER BEARING CARRIAGE – Carriage rides on precision roller bearings instead of metal on metal bushings resulting in accurate operation that will never wear out. WAYS – 1½ inch square cold rolled steel structural tubing SAW BOX – Welded -1/4 inch (.236) thick steel. Inside dimensions 38″ wide x 22″ deep x 74″ long. Overall height with the hood closed – 53 inches. Stainless drain cap and heavy-duty locking casters included. VISE – Cast iron jaws; 12″ high x 12″ long ‒  Maximum workable jaw opening 26 inches ‒  Lateral travel of vise assembly – 7 inches V-BELTS – Connect the motor to the saw blade and powerfeed screw MOTOR – 220 volts 3 H.P. TEFC with thermal protection and start and run capacitors SHIPPING & WEIGHT – 1962 lbs. FREE CRATE INCLUDED and NO “Handling Charges” 105 x 53 x 58 in (10.50 pcf) YOU WILL NEED TO ARRANGE AND PAY FOR A FORKLIFT TO UNLOAD THE CRATE WHEN IT ARRIVES. The carrier will be requested to call ahead to schedule a delivery appointment All Highland Park slab saws come ready to run from the factory precision aligned to a tolerance of /-.03mm /- .001 inch
