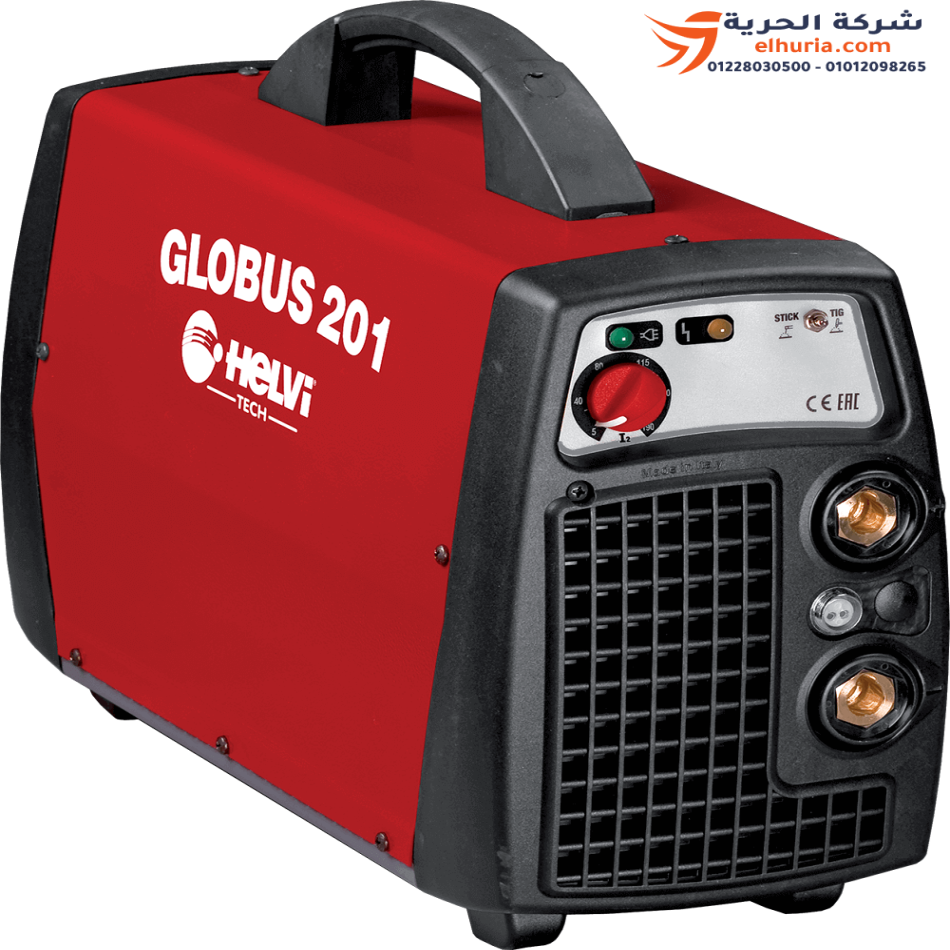

201 amp electric welding machine Helvi GLOBUS 201

DESCRIPTION Welding inverters are designed to work with unstable supply voltages caused by the use of power generators and long connection lines. Able to meet the requirements of even the most demanding user with a wide range of currents and a high-duty cycle. Excellent welding features are guaranteed with all types of commercial electrodes (rutile, basic, stainless steel, etc.). Equipped with special features that control excess input voltage, overheating, and electrode sticking, functions that protect aginst unstable generators even in the harshest working conditions. The TIG/MMA switch also enables use for TIG Lift Arc welding. The high-duty cycle makes these inverters suitable for use on heavy steel structural work, in industry, and by professionals.   TECHNICAL DATA Input voltage (1ph)  230V - 50/60Hz Power 60% 7 KVA No load output voltage  75 ÷ 20 V Amp. min-max 5 ÷ 200 A Duty Cycle 40° 200A @ 600A @ 100% Ø E 1,6 ÷ 5 mm Insulation H Protec. Degree IP22S Machine (LxWxH)  465x175x345 mm Package (LxWxH)  550x215x395 mm Weight box/net  13,2 / 12,2 Kg Code 99805972
