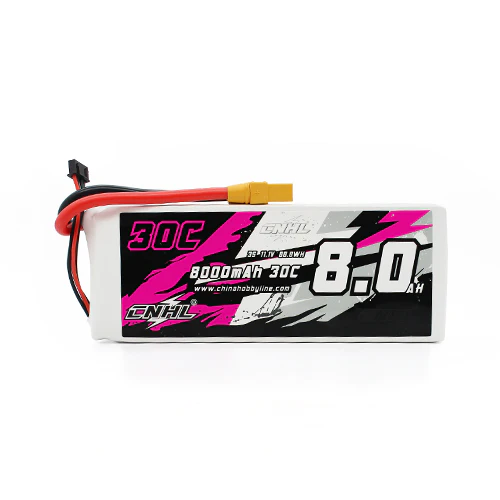

CNHL 8000mAh 11.1V 3S 30C Lipo Battery with XT90 Plug

The CNHL 8000mAh 11.1V 3S 30C LiPo battery with XT90 plug is a high-capacity battery suitable for a wide range of RC applications, particularly those requiring extended flight or operation times. Here are its specifications: Capacity: 8000mAh (milliampere-hour) indicates the amount of charge the battery can hold. With its high capacity, this battery is well-suited for powering large drones, RC airplanes, boats, and other hobby-grade vehicles that require long run times. Voltage: 11.1V (volts) refers to the nominal voltage of the battery. This is a 3-cell battery pack, with each cell having a nominal voltage of 3.7V. When combined in series, they sum up to 11.1V. Discharge Rate (C-Rating): 30C indicates the discharge rate of the battery. The “C” rating represents the maximum continuous discharge rate relative to the capacity of the battery. In this case, it can provide a continuous discharge rate of up to 30 times its capacity (8000mAh), which is 240A (amps). While not as high as some other batteries, this C-rating is still sufficient for many applications, especially those that prioritize capacity over instantaneous power delivery. Plug Type: XT90 plug is a common and reliable connector used in RC applications. It’s known for its ability to handle high currents without overheating and is widely compatible with various RC models and accessories. Overall, the CNHL 8000mAh 11.1V 3S 30C LiPo battery with XT90 plug offers a high capacity for extended run times, making it ideal for applications where endurance is key. As with any LiPo battery, it’s important to use it within its specified limits, follow proper charging and storage procedures, and adhere to safety guidelines to ensure optimal performance and longevity while preventing accidents. Specification- Capacity 8000mAh Voltage 11.1V / 3-Cell / 3S1P Discharge Rate 30C Continual / 60C Burst Charge Rate 5C Max Size(1-5mm difference) 27X69X170mm Approx Weight(±5g) 617g Output Connector XT90 Balance Connector JST / XH Remarks N/A Wire (AWG) 10#   Package Include 1 X CNHL 8000mAh 11.1V 3S 30C Lipo Battery with XT90 Plug
