5S 15A 18650 Li-ion Lithium Battery BMS Charger Protection Board for 18V 21V Battery

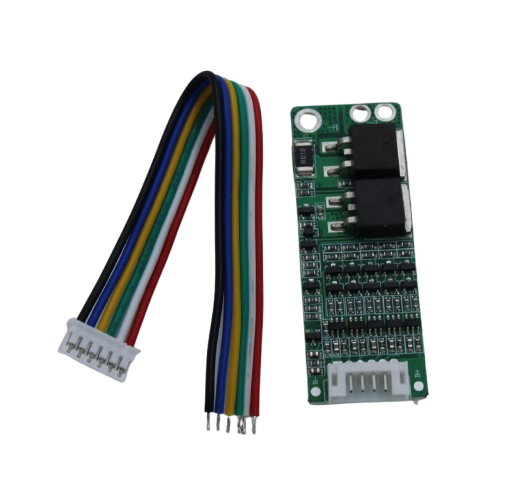

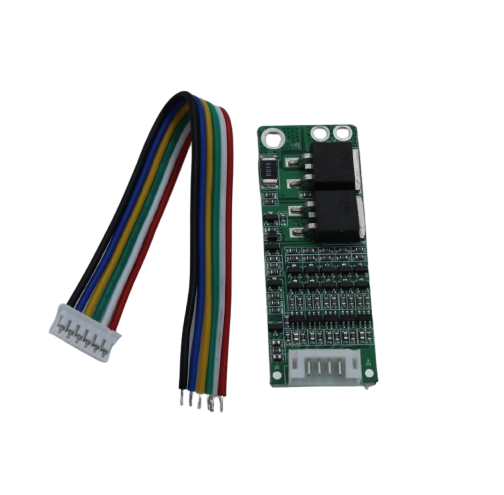

PRODUCT DESCRIPTION This is 5S 15A 18650 Li-ion Lithium Battery BMS Charger Protection Board for 18V 21V Battery. It ensures the security of the battery pack. Connection Diagram of 5S 15A 18650 Li-ion Lithium Battery BMS Charger Protection Board for 18V 21V Battery Features: Single section power consumption since: 30 μA Power consumption between single section: 3 μA Single section over charging sensing voltage: 4.18- / 4.22V Over-charging recovery voltage: 4.05-4.15V Overcharge detection delay: 0.5 / 1.0 / 2.0S Single section discharge detection voltage: 2.75-2.85V Over discharge recovery voltage: 2.90-3.20V Discharge detection delay: 0.5-2.0S Specification: Charging voltage (V) 21 Charging MOS pressure value (V) 35 Discharge MOS pressure value (V) 35 Charging current (A) 56 Continuous discharge current (A) 15 Over current protection (A) 50/55/60 Over current protection delay (mS) 20/25/30 Shipping Weight 0.004 kg Shipping Dimensions 8 × 3 × 3 cm   Package Includes: 1 x BMS Charger Protection Board 1 x Connector Cable
